THE FOLLOWING IS FOR INFORMATION PURPOSES ONLY:

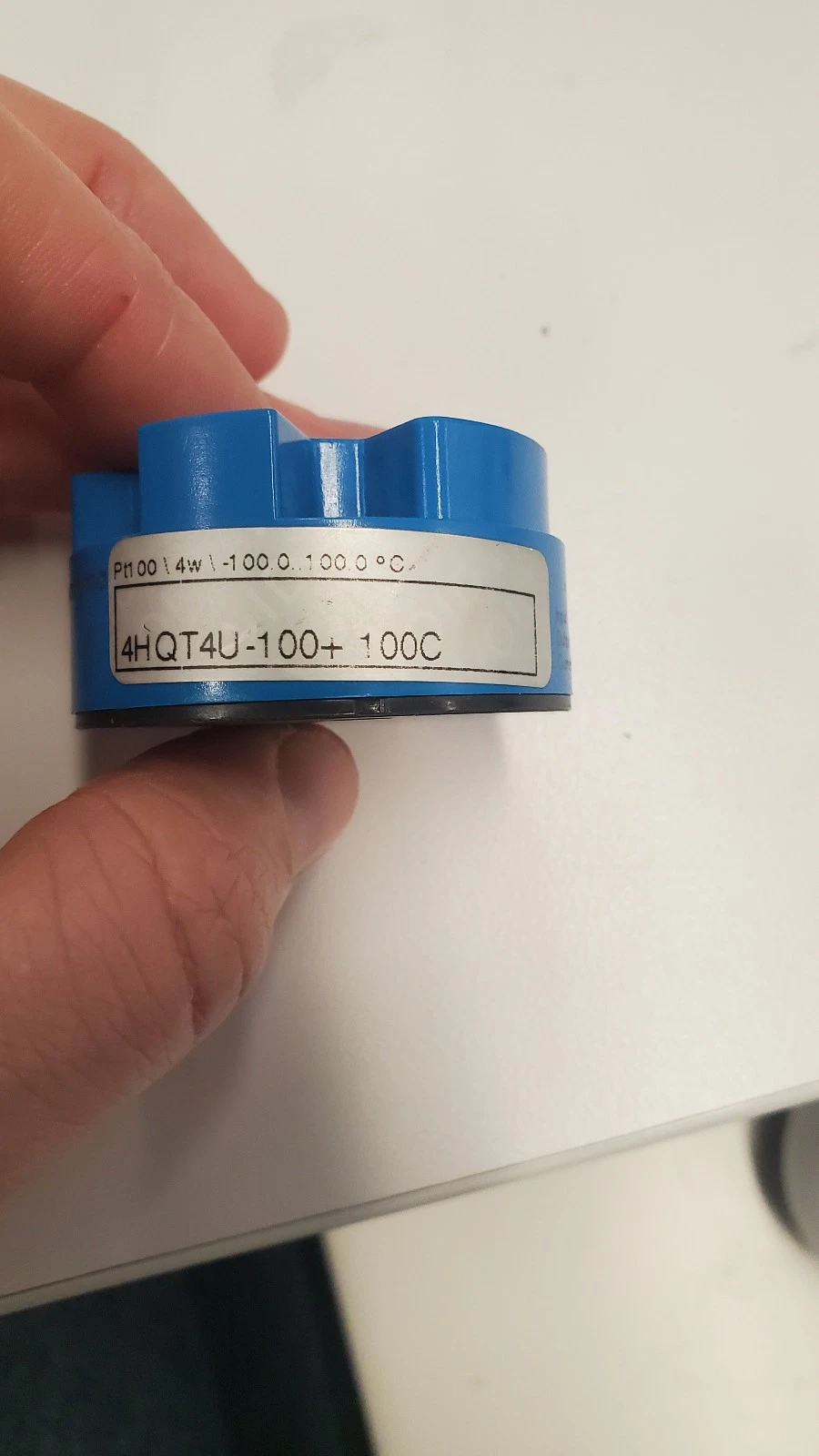

Input Range: Pt100, selectable range -328 to 1202F (-200 to +650C), minimum span 18F (10C)
Output: Standard 4-20mA (Optional: 20 to 4mA)
Zero & Span Adjustments: Using WeedComm Software can be set anywhere within sensor range. Zero and Span are non interacting.
Failsafe: Standard: upscale (Optional: downscale)
Response Time: 1 second
Damping: User settable from 0 to 8 seconds
Power Supply: 10 to 35VDC
Load Resistance: RMax (ohms) = (VSupply - 10V) / .022A
Accuracy: For Pt100: .36F (0.2C) or 0.08% of span (whichever is greater)
Long Term Stability: +/-0.05% of calibrated span per year
Temperature Limit: -40F to 185F (-40C to 85C)
EMI/RFI Effect: Conforms to European Union Directives (CE Mark)
$100. Pick up at VRP Labs.
To purchase, email katie@valleybioservices.com or click on the author to start a chat.
